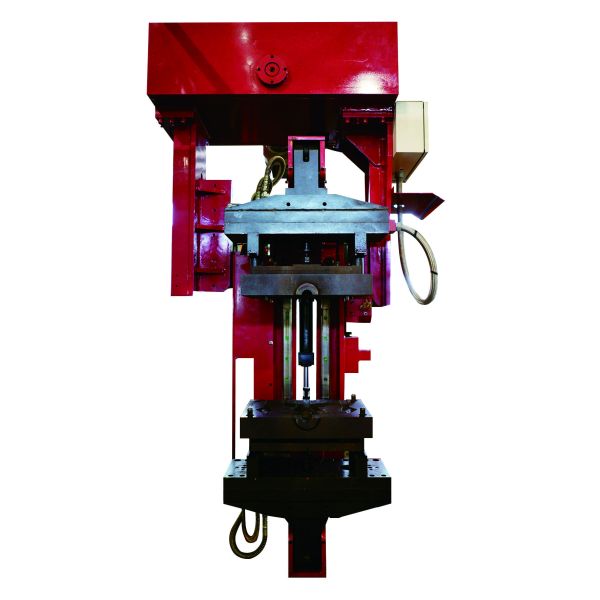

CE Brass Full Automatic Low Pressure Die Casting Machine Metal Alloy Casting

Brand Name : DZ

Model Number : LPDC

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2set/per month

Delivery Time : 30work days

Packaging Details : wood

Furnace Quantity : 1

Die Cleaning Box Quantity : 1

Feeder Quantity : 1

Blackwash Tank Quantity : 1

Hoist Quantity : 1

Lift Tube Quantity : 3

Pneumatic Pressure : 6KG

Water Pressure : 3KG

Contact Now

NO.	DESCRIPTION
1	The function and parameters of the touch panel are set by Chinese/ English 1.1.Operation Control System: With Siemens PLC control device; 1.2 Program Verstions: CN and EN 1.3 Touch screen panel + Team Viewer and Industrial PC control. 1.4 Alarm and troubles shooting codes presentation, for problems fixing quickly and maintenance works.
2	2.1 Manipulator is with servo motor driving unit, linear guilding rail system, to move the manipulator in horizontal and vertical direction: faster, more stable and high precision control performances.
3
3	3.7 With material feeding cover and desert cleaning cover, automatically control; 3.8 Furnace Temperature history recording and inspection control progr. 3.9 Furnace opening methods: manually / automatically program
4	4.1 Receiving car: with performances of moving up-down; forward & backward; 4.2 Transport the casting products to storage vehicles directly.
5	Crane with electric hoist: 5.1 Effective lifting weight 500kg; 5.2 Crane is used to lift the furnace cover for furnace cleaning, maintenance etc.
6	Graphite Bath: 6.1 With performances of Constant temperature and graphite agitation. 6.2 With 2 sperated tanks, tubes and agitators made of stainless steel material( SUS 316L). 6.3 Used for die cooling and coating; 6.4 Graphite coating is for easier pieces removal and die's temperature control. 6.5 Effective using space: 1124*896mm
7	Hydraulic and drives system: 7.1 Components supplies with internationa high quality brands: SUN,REXROTH,YUKEN etc. 7.2 The components are special used, with performances of high stability, strong protection from contamination, suitable for water-based hydraulic oil operation etc. 7.3 The hydraulic oil ( Ethylene glycol ) works at low temperature, stable quality, not get deteriorated. 7.4 Servo motor driving, no vibration.
8	Furnace casting system: 8.1 The pneumatic components supplied with NORGREN,FESTO brands; 8.2 Pressure is with proportional control device; 8.3 With 2- security valves protection design for guarantee high quality of casting and safety.
9	9.1 The riser tube on furance cover are with ceramic sealings; 9.2 Riser Tube heating method: Medium frequency electricity heating, power 60KW; average power consumption: 7KW; 9.3 Heating time till 900℃ ≈ 90 seconds 9.3 Contains water cooling system.
10	10.1 Die Cleaning Chamber: shot blasting device (copper powder blasting) for the cleaning of the dies. 10.2 The dies can be moved to cleaning chamber automatically for cleaning process @ heavy oxidized contaminations condition.

CE Brass Full Automatic Low Pressure Die Casting Machine Metal Alloy Casting

Click the link to view video:https://www.youtube.com/watch?v=whYkgnMNCFw
